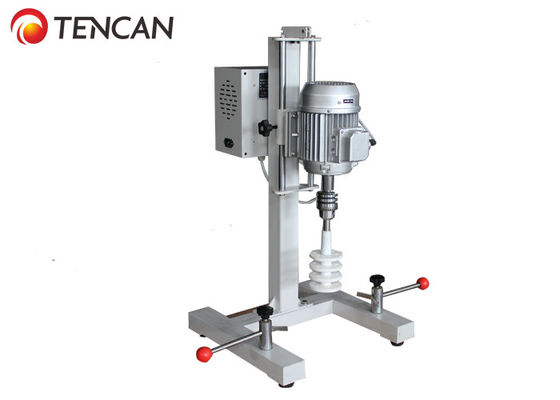

0.37KW Laboratory Scale 1L Stirred Ball Mill 1400rpm
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | JM-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case+Foam |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Product Name: | Laboratory Wet Grinding Ball Mill | Model No.: | JM-1 |
|---|---|---|---|
| Total Volume: | 1L | Max Capacity: | 0.35L |
| Rotate Speed: | 50-1400 Rpm | Speed Control: | Frequency Converter |
| Voltage: | 220V-50Hz Or 110V-60Hz | Power: | 0.37KW |
| Highlight: | Stirred Ball Mill 1400rpm,0.37KW Stirred Ball Mill,1L Wet Grinding Ball Mill |
||
Product Description
Laboratory Scale 1400rpm 1L wet grinding ball mill, Stir Ball Mill for Sale
Application:
It is widely used Pearl, ginseng, Dendrobium candidum, tablets, medicament, liquorice, coke, coal, glass, cellulose, paper, chip, polymer, pigment, metal oxide, iron ore, iron powder, aluminum powder, magnesium powder, ceramics, Alumina, bone, kaolin, Limestone, gypsum, quartz, minerals, ores, carbonized fibres, graphite, ink, clay minerals, fibre products, sewage sludge, catalysts, chemicals, alloys, soils, waste samples, wood, plant materials, Cement slag, concrete, slag, tobacco.
Overview
Stirred Laboratory Ball Mill mainly consists of jar with inner grinding media, stirring device and other auxiliary devices such as recycling device, cooling device, timing device, speed adjusting controller, and etc. Its advantages of high efficiency and fine granularity meet technological requirements of various processes. Stirred ball mill is a kind of ideal equipment that are used to crush new materials and research painting for universities, research centers and enterprises because of its features of small batch, low power and low price.
Working Principle
When machine rotates at high speed under driving of main axis and grind media move irregularly at the same time, the grind material can be crushed, ground and sheared into fine granularity powder. The size, shape and matching ratio of the grind media can affect the grinding result. Generally speaking, the bigger the mill media is, the finer the grinding powder is. A proper match ratio of grind medias and proper adjustment of rotation speed can get better grinding effect.
Features
1. High utilization rate of energy, saving energy.
2. Granularity is adjustable by adjusting grinding time.
3. Less vibration, low noise.
4. Simple structure, easy operation.
5. Meet requirements of various processes, realize continuous or intermittent production.
6. Jar with jacket, easy to control the grinding temperature .
7. Customized service is available. Special functions such as timing, speed adjusting, recycling, temperature controlling can be selected and ordered.
8. A variety of grinding jars in different materials is available for customer’s option such as stainless steel, corundum ceramic, polyurethane, zirconia and so on.
Technical Parameters
| Technical Parameters of Stirred Laboratory Ball Mill | ||||||||
| Model No. | Rotate Speed (RPM) |
Total Volume (L) |
Max Load Volume (L) |
Power Supply | Available Jars | Feed Sizes (mm) |
Output Granularity (μm) |
Control Mode |
| JM-1L | 50-1400 | 1 | 0.35 | 220V/0.37KW | Stainless Steel Jar Nylon Mill Jar Corundum Mill Jar PU Mill Jar Zirconia Mill Jar Agate Mill Jar PTFE Mill Jar |
≤5mm | ≤1μm | Frequecny Converter |
| JM-2L | 50-1400 | 2 | 0.70 | 220V/0.37KW | ≤5mm | ≤1μm | Frequecny Converter | |
| JM-3L | 50-1400 | 3 | 1.05 | 220V/0.37KW | ≤5mm | ≤1μm | Frequecny Converter | |
| JM-5L | 60-560 | 5 | 1.75 | 220V/0.75KW | Carbon steel Stainless steel Nylon liner PU liner Alumina ceramic liner PTFE liner |
≤5mm | ≤1μm | Frequency Converter or Fixed Speed setting at buyer's option |
| JM-10L | 60-560 | 10 | 3.50 | 220V/1.5KW | ≤10mm | ≤1μm | ||
| JM-15L | 60-380 | 15 | 5.25 | 380V/2.2KW | ≤10mm | ≤1μm | ||
| JM-20L | 60-380 | 20 | 7.00 | 380V/2.2KW | ≤10mm | ≤1μm | ||
| JM-30L | 60-310 | 30 | 10.50 | 380V/3.0KW | ≤10mm | ≤1μm | ||
| JM-50L | 60-140 | 50 | 17.50 | 380V/4.0KW | ≤10mm | ≤1μm | ||
| JM-100L | 60-140 | 100 | 35.00 | 380V/7.50KW | ≤20mm | ≤1μm | ||
| JM-200L | 60-110 | 200 | 70.00 | 380V/11KW | ≤20mm | ≤1μm | ||
| JM-300L | 60-110 | 300 | 100.00 | 380V/15KW | ≤20mm | ≤1μm | ||
| JM-500L | 60-90 | 500 | 170.00 | 380V/18.50KW | ≤20mm | ≤1μm | ||
| JM-600L | 60-90 | 600 | 200.00 | 380V/22KW | ≤20mm | ≤1μm | ||
Available Mill Jars & Balls
As a professional manufacturer of planetary ball mill, we not only supply various kinds of planetary ball mills, but also provide all kinds of accessories of mill jars and mill balls in full sizes.
Available mill jars: 304 or 316L stainless steel mill jars, agate mill jars, , Alumina ceramic mill jars (corundum ) zirconia mill jars, silicon nitride mill jars, nylon mill jars, PU mill jars, tungsten carbide mill jars, PTFE mill jars, and etc.
Available mill balls in full sizes: Tungsten carbide balls, Agate balls, Zirconia balls, Stianless steel Balls, Alumina balls, and etc.
Lab roll ball mill/ planetary ball mill/ Sitrred ball mill
