Rolling Ball Mill Grinding Machine Supplier Solution for Precise and Durable Powder Pulverizer 2.2KW
Product Details:
| Place of Origin: | Hunan，China |
| Brand Name: | TENCAN |
| Certification: | ISO CE |
| Model Number: | QM-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plywood Case with Foam |
| Delivery Time: | 15-25 days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 210 Set/Sets per Month |
|
Detail Information |
|||
| Rotate Speed: | 20~45rpm | Warranty: | 1 Year |
|---|---|---|---|
| Customized Serices: | Cylinder Lining | Product Name: | Poroduction Type Rolling Ball Mill |
| Feeding Size (mm): | 1-20 Mm | Output (kg/h): | 5-35Kg/h |
| Power: | 2.2KW | Voltage: | 380V-50Hz |
| Highlight: | 2.2KW Rolling Ball Mill,Precise Rolling Ball Mill,Durable Grinding Rolling Ball Mill |
||
Product Description

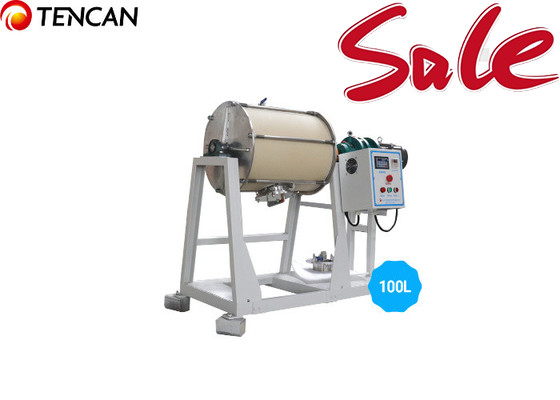

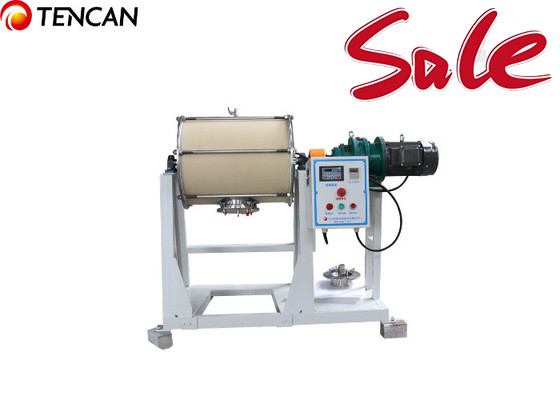

2.2KW Rolling Ball Mill The Perfect Solution for Precise and Durable Grinding
Product Description:
The Production Type Light Roll Ball Mill is a grinding equipment used for ultra-fine grinding and mixing in laboratory and small batch production. It is also known as a rolling machine altar and is preferred for its beautiful design, compact structure, easy operation, high efficiency, and uniform granularity. This machine is widely used in industries such as electronic materials, magnetic materials, biological medicine, ceramic glaze, metal powder, non-metallic minerals, and new materials.
The machine is engineered with an optimal rotating speed, where the mill jar is rotated by rubber rollers, causing the balls inside to disperse and flow materials smoothly, achieving a micron-level powder. The timing control panel offers pausing and cumulative timing functions, enabling users to customize the working time according to their requirements. This feature saves time and labor while enhancing the machine's ease of operation.
During operation, the grinding media and materials inside the tank are rotated to a certain height and then fall down due to gravity. As a result, the materials are crushed by the impact, friction, and shearing actions of the grinding media's rolling and sliding motion. Additionally, due to the revolution and rotation of the mill jar, the materials are continuously mixed and ground, and the final product is discharged from the valve.
Features:
- Product Name: Poroduction Type Rolling Ball Mill
- Warranty: 1 Year
- Key Word: Dry/Wet Grinding Ball Mill
- Customized Services:
- Cylinder Lining
- Output Size (mesh): ≥300 Mesh
- Rotating Ball Mill
- Rolling Ball Mill
- Rotating Ball Mill Machine
- Dry Grinding Ball Mill
- Wet Grinding Ball Mill
Technical Parameters:
| Technical Parameters OF Light Type Roll Ball Mill | ||||||||
| Model | Volume Size (L) |
Rotating Speed (rpm) |
Max Capacity (L) |
Power Supply | Available Jars | Feed Size (mm) |
Output Granularity (mesh) |
Adjusted Mode of Rotate Speed |
| QM-20L | 20 | 20~60 | 6.6 | 220V/0.75KW | carbon steel stainless steel, lining,replaceable,nylon polyurethane,PTFE,corundum and etc |
≦5 | ≧300 | Frequency converter speed orfixed speed |
| QM-30L | 30 | 20~60 | 10.5 | 220V/0.75KW | ≦5 | ≧300 | ||
| QM-50L | 50 | 20~50 | 17.5 | 220V/1.5KW | ≦5 | ≧300 | ||
| QM-100L | 100 | 20~45 | 35 | 380V/2.2KW | ≦10 | ≧300 | ||
Applications:
Brand Name: TENCAN
Model Number: QM-100
Place of Origin: Hunan, China
Certification: ISO CE
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Plywood Case with Foam
Delivery Time: 15-25 days
Payment Terms: T/T, L/C
Supply Ability: 210 Set/Sets per Month
Output (kg/h): 5-35Kg/h
Product Name: Production Type Rolling Ball Mill
Power: 2.2KW
Customized Services: Cylinder Lining
Rotate Speed: 20~45rpm
The TENCAN Rolling Ball Mill is a high-efficiency grinding equipment designed for fine grinding of various materials. It is widely used in industries such as ceramic, chemical, medicine, electronic materials, magnetic materials, and mineral processing.
- High Efficiency: The circular ball mill design allows for uniform grinding and a higher grinding efficiency.
- Easy Operation: The QM-100 model is equipped with a user-friendly control panel, making it easy to operate and adjust the grinding speed.
- Durable Construction: Built with premium materials and enduring rigorous quality control, the machine assures prolonged durability and reliable performance.
- Customized Services: The cylinder lining can be customized according to the specific needs of the customer, providing a better grinding experience.
- Wide Range of Applications: The rolling ball mill can be used for grinding various materials, including ceramics, chemicals, minerals, and more.
- Compact Design: The machine's compact design facilitates easy installation and optimizes space utilization in the production area.
The TENCAN Rolling Ball Mill can be used in various scenarios, including:
- Laboratory Research: The QM-100 model serves as an ideal tool for laboratory research, empowering scientists and researchers to test and develop innovative materials.
- Production Line: The machine's high efficiency and durability render it perfect for use in a production line, thereby boosting production capacity and minimizing labor costs.
- Quality Control: The precise and uniform grinding provided by the rolling ball mill makes it an essential tool for quality control in industries such as ceramic and chemical production.
- Material Processing: The machine can be used for fine grinding of various materials, making it a versatile tool for industries such as electronics, medicine, and mineral processing.
The TENCAN Rolling Ball Mill, with its high efficiency, durability, and wide range of applications, is an essential tool for various industries. Its customizable features and easy operation make it a popular choice for both laboratory research and production line use. Trust TENCAN for all your grinding needs!
Customization:
Brand Name: TENCAN
Model Number: QM-100
Place of Origin: Hunan, China
Certification: ISO CE
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Plywood Case with Foam
Delivery Time: 15-25 days
Payment Terms: T/T, L/C
Supply Ability: 210 Set/Sets per Month
Product Name: Production Type Rolling Ball Mill
Power: 2.2KW
Feeding Size (mm): 1-20 Mm
Voltage: 380V-50Hz
Rotate Speed: 20~45rpm
This custom service is for the Rolling Ball Mill, also known as Rotary Ball Mill or Circular Ball Mill, which is used for grinding materials into fine powder. It is commonly used in laboratories for research and development purposes.
Packing and Shipping:
Our Rolling Ball Mill is carefully packaged to ensure safe and secure delivery to our customers. The packaging process involves the following steps:
- First, the Rolling Ball Mill is wrapped in a protective layer of bubble wrap to prevent any damage during transportation.
- Next, the wrapped Rolling Ball Mill is placed in a sturdy cardboard box.
- The box is then filled with packing foam to provide additional cushioning and support.
- Once the Rolling Ball Mill is securely packed, the box is sealed with strong packing tape.
Our packaging materials are all eco-friendly and recyclable, in line with our commitment to sustainability.
For shipping, we collaborate with dependable and reputable logistics firms to guarantee prompt and efficient delivery of our Rolling Ball Mills. The shipping options and associated costs may differ based on the destination and the weight of the mill.
Upon receipt of your order, we will provide you with a tracking number so you can monitor the status of your shipment.
Thank you for choosing our Rolling Ball Mill. We are committed to delivering high-quality products and excellent customer service.
