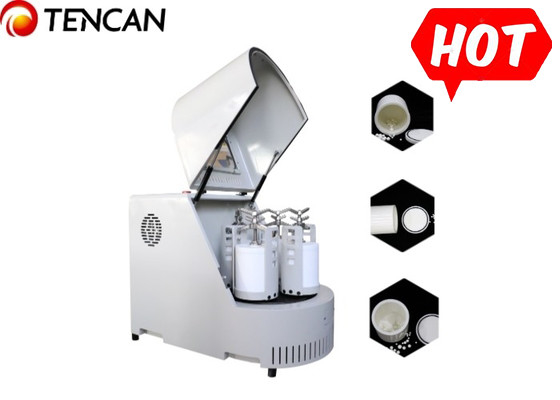

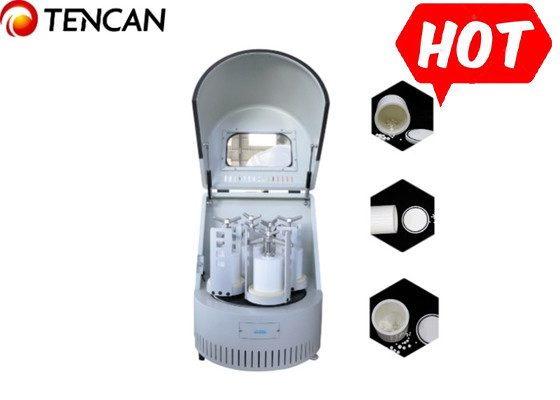

Nano Scale Laboratory Powder Grinding Planetary Ball Mill Price with High Rotate Speed 70-670rpm

Product Description:

The Planetary Ball Mill stands as a cutting-edge and highly efficient grinding tool, tailored for the fine grinding and mixing of diverse materials. It represents a groundbreaking advancement in nanoparticle production, delivering unmatched performance and precision.

• Voltage: Available in both 220V-50Hz and 110V-60Hz options, making it suitable for use in different regions and countries.
• Output Size: With a minimum output size of 0.1μm, this ball mill can achieve ultra-fine grinding, ideal for producing nanoparticles and other fine materials.
• Weight: Weighing only 90kg, this ball milling device is compact and easy to move, making it convenient for laboratory and industrial use.
• Working Model: The Planetary Ball Mill comes with the option of 2 or 4 pots, allowing for multiple samples to be processed simultaneously. This greatly increases efficiency and productivity.
• Rotate Speed: With a rotating speed range of 70-670rpm, this ball mill provides high energy for efficient grinding and mixing of materials.

The Planetary Ball Mill comprises a main disk, rotating pots, and a transmission system. As the pots revolve around the main disk, they generate a centrifugal force that facilitates the grinding and mixing of materials within. This process leads to a fine and consistent particle size distribution, rendering it a favored option for fine grinding and mixing applications across various industries.

The Planetary Ball Mill is widely used in industries such as pharmaceuticals, chemicals, ceramics, and materials science. It is ideal for grinding and mixing of materials such as pigments, minerals, ores, and even hard-to-grind materials like polymers and electronic materials. It is also suitable for producing nanocomposites and nanocrystalline materials.

• High energy ball mill for efficient grinding and mixing
• Produces fine and uniform particle size distribution
• Easy to operate and maintain
• Suitable for a wide range of materials
• Compact and portable design
• Ideal for both laboratory and industrial use

The Planetary Ball Mill is a must-have in any laboratory or industrial setting where fine grinding and mixing is required. With its advanced features and high performance, it is sure to exceed your expectations. Contact us now to learn more and get your own Planetary Ball Mill.

Features:

Stable Revolving Speed

The gear transmission of our ball mill ensures a stable revolving speed, resulting in consistent and repeatable experimental results.

Planetary Movement Principle

Our machine utilizes the principle of planetary movement, offering high speeds and substantial energy output. Furthermore, its high efficiency combined with fine granularity renders it a versatile instrument for processing a wide range of materials.

Multi-Sample Production

With our ball mill, you can produce four powder samples of different sizes and materials simultaneously, saving time and effort.

Frequency Converter Control

The machine is equipped with a frequency converter, allowing you to select the ideal rotating speed for your desired experimental result. The converter also has under voltage and over-current protection for the motor.

Multiple Operating Modes

Our planetary ball mill has functions such as timing power off, self-timing forward and reversal rotation. You can choose from one-way direction, alternation, succession, and time setting modes to improve grinding efficiency based on your experimental needs.

Technical Features

• Low center of gravity
• Stable performance
• Compact structure
• Easy operation
• Reliable safety
• Lower noise
• Small loss

Safety Features

A safety switch is installed on the machine to prevent accidents while it is running, in case the safety cover is opened.

Technical Parameters:

Applications:

Brand Name: TENCAN

Model Number: XQM-4

Place of Origin: Changsha,Hunan, China

Certification: ISO CE

Minimum Order Quantity: 1 set

Price: negotiable

Packaging Details: Plywood Case & Foam

Delivery Time: 7-10days

Payment Terms: T/T, Western union

Supply Ability: 420 Sets per Month

The Lab Planetary Ball Mill is a high-tech milling device designed for grinding and mixing materials on a nanoscale level. It is used in various industries such as pharmaceutical, materials research, chemical, metallurgy, mining, ceramic, and food industry for the production of fine powders.

• Highly efficient and energy-saving
• Two or four pots can be used simultaneously for increased productivity
• Zirconia jars and balls ensure contamination-free grinding
• Adjustable speed and direction for different grinding modes
• Compact design for easy operation and maintenance
• Wide range of applications

The Planetary Ball Mill operates with two or four grinding jars, which are rotated on a sun wheel that rotates around its own axis. The grinding balls in the jars are affected by the centrifugal forces created by the rotation of the sun wheel, resulting in high-energy impacts and grinding of the materials.

• Feeding Size: 1 to 10mm
• Max Production Capacity: 1.32L

• Nanoscale powder making
• Pharmaceutical industry - for grinding and mixing of drugs
• Materials research - for producing fine powders of various materials
• Chemical industry - for mixing and grinding of chemicals
• Metallurgy - for grinding and mixing of metals and alloys
• Mining - for grinding and mixing of ores and minerals
• Ceramic industry - for production of ceramic powders
• Food industry - for mixing and grinding of food ingredients

Invest in the TENCAN Planetary Ball Mill for efficient and precise grinding and mixing of materials on a nanoscale level. Contact us now to get a quote or for more information.

Customization:

Brand Name: TENCAN

Model Number: XQM-4

Place of Origin: Changsha,Hunan,China

Certification: ISO CE

Minimum Order Quantity: 1 set

Price: negotiable

Packaging Details: Plywood Case & Foam

Delivery Time: 7-10 days

Payment Terms: T/T, Western Union

Supply Ability: 420 Sets per Month

Power: 0.75KW

Jar Volume: Each 1L

Working Model: 2 or 4 Pots One Time

Feature: High Speed and High Efficiency

Rotate Speed: 70-670rpm

This is a customized service for the Planetary Ball Mill, a high speed and high efficiency milling tool. Our brand, TENCAN, offers the XQM-4 model with a power of 0.75KW and a jar volume of 1L. Our product is ISO and CE certified, ensuring its quality and reliability.

The minimum order quantity is 1 set, and the price is negotiable. The packaging details include a plywood case and foam for safe transportation. Our delivery time is 7-10 days, and we accept payment through T/T and Western Union.

With a supply ability of 420 sets per month, we can cater to your needs in a timely manner. The working model allows for 2 or 4 pots to be used at one time, increasing efficiency. Our Planetary Ball Mill operates at a speed range of 70-670rpm, guaranteeing accurate

and effective milling performance.

For tailored Planetary Ball Mill solutions, trust TENCAN to deliver high-quality and efficient milling. Reach out to us today to discuss your specific needs.

Packing and Shipping:

The Planetary Ball Mill is encased in a robust wooden packaging, designed to offer exceptional protection during transit.

This packaging is enhanced with foam padding to further safeguard the machine and prevent any potential damage. Additionally, the manufacturer's logo and detailed product information are prominently displayed on the case for easy recognition.

Delivery of the package is contingent upon the customer's preference and location, via either air or sea freight. The delivery timeframe will differ according to the chosen shipping method and the final destination.

For international orders, the package will be accompanied by all necessary documents for customs clearance. The customer is responsible for any customs fees or duties that may be incurred.

Once the package has been shipped, the customer will receive a tracking number to monitor the delivery status of their order. Our customer service team will also be available to assist with any shipping inquiries.

Rest assured that our team takes great care in packaging and shipping our products to ensure they arrive safely and in a timely manner.
