Tailored Planetary Ball Mill Small Ball Grinder Supplier Meeting Your Unic Needs
Product Details:
| Place of Origin: | Changsha, China |
| Brand Name: | TENCAN |
| Certification: | ISO CE |
| Model Number: | XQM-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plywppd Case & Foam |
| Delivery Time: | 3-7days |
| Payment Terms: | T/T, Western union |
| Supply Ability: | 450 Sets per Month |
|
Detail Information |
|||
| Feeding Size: | 0.1 To 10mm | Rotate Speed: | 70-670rpm |
|---|---|---|---|
| Key Word: | Small Ball Grinder Mill Machine For Lab | Working Model: | 2 Or 4 Pots One Time |
| Max Production Capacity: | 1.98L | Voltage: | 220V Or 110V |
| Power: | 0.75kw | Jar Volume: | Each 1.5L |
| Highlight: | Small Ball Grinder Supplier,Tailored Planetary Ball Mill,Small Planetary Ball Mill |
||
Product Description
Customized Planetary Ball Mill for Your Specific Requirements
Product Description:

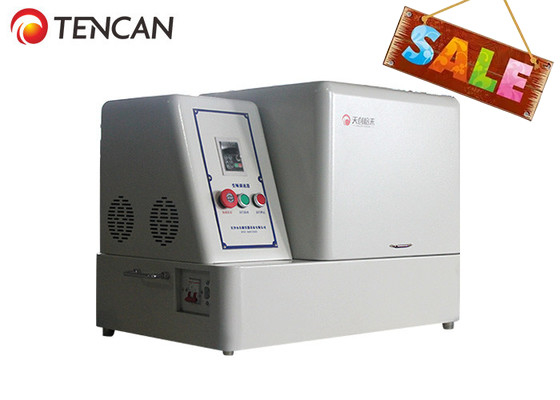

Laboratory Planetary Ball Mill:
The Laboratory Planetary Ball Mill is an indispensable tool for milling high-tech materials, achieving fine grinding, mixing powders, producing nano-powders, developing new products, and facilitating small-batch production.It boasts numerous benefits and characteristics, including compact size, high efficiency, low noise levels, and comprehensive functionality.This makes the Tencan planetary ball mill an ideal equipment for R&D institutions, universities, and enterprises' laboratories to obtain fine powder samples.
Designed with four working positions, the Tencan planetary ball mill allows for the production of four samples at one time. Furthermore, when equipped with vacuum ball mill jars, this machine has the capability to produce powder samples in a vacuum setting.
Four Working Positions:

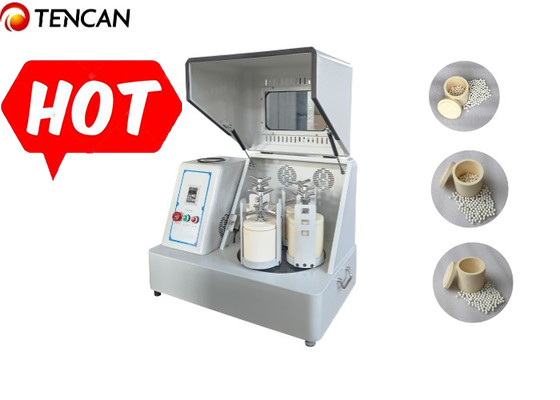

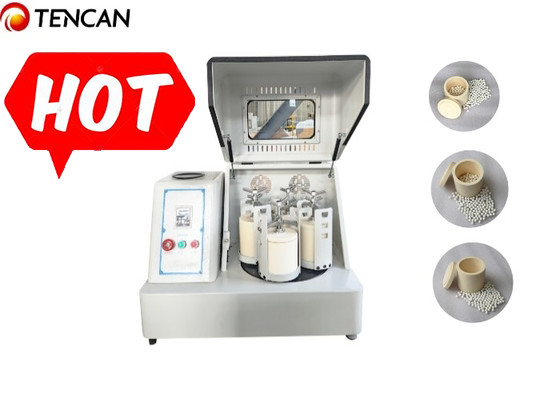

The Laboratory Planetary Ball Mill has the ability to accommodate either two or four mill jars on one turntable. As the turntable rotates, the jars' axis makes planetary movements at high speeds, resulting in strong impacts between the balls and materials inside the jars. This high-speed movement eventually grinds the materials into a fine powder. Both dry and wet grinding techniques can be applied to grind a wide range of materials. This machine is capable of achieving an output powder granularity as small as 0.1μm, or even down to the nano scale.
Features:
- Product Name: Planetary Ball Mill
- Accessories: Corundum Jars and Aluminium Balls
- Feeding Size: 0.1 to 10mm
- Output Size: Minimum 0.1μm
- Warranty: 1 Year
- Working Model: 2 or 4 Pots One Time
- Ball Milling Machine
- Ball Mill Grinder
- Ball Milling Machine Price
Technical Parameters:
Technical Parameters
| Main Parameters of Vertical Planetary Mill Ball (SquareType) | |||||
| Model | Power(KW) | Voltage | Dimension(mm) | Revolution Speed (rpm) |
RotationSpeed (rpm) |
| XQM-1 | 0.75 | 220V-50Hz | 750*470*564 | 35-325 | 70-670 |
| XQM-2 | 0.75 | 220V-50Hz | 750*470*564 | 35-335 | 70-670 |
| XQM-4 | 0.75 | 220V-50Hz | 750*470*564 | 35-335 | 70-670 |
| XQM-6 | 0.75 | 220V-50Hz | 750*470*564 | 35-335 | 70-670 |
| XQM-8 | 1.5 | 220V-50Hz | 900*600*640 | 35-290 | 70-580 |
| XQM-10 | 1.5 | 220V-50Hz | 900*600*640 | 35-290 | 70-580 |
| XQM-12 | 1.5 | 220V-50Hz | 900*600*640 | 35-290 | 70-580 |
Accessories of Grinding Pots & Balls
Available grinding pots in full sizes:
Stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc.
| References for Matchable Jar Sizes with Square Shape Planetary Ball Mill | ||||
| Model No. | Total Volume (L) |
Matchable Jar Sizes |
Matchable Jars Quantity |
Matchable Vacuum Jar Sizes |
| XQM-2 | 2.0L | 50-500ml | 2pcs or 4pcs | 50-250ml |
| XQM-4 | 4.0L | 250-1000ml | 2pcs or 4pcs | 50-1000ml |
| XQM-6 | 6.0L | 1-1.5L | 2pcs or 4pcs | 50-1000ml |
| XQM-8 | 8.0L | 1-2L | 2pcs or 4pcs | 50-1500ml |
| XQM-10 | 10L | 1-2.5L | 2pcs or 4pcs | 1-2L |
| XQM-12 | 12L | 1-3L | 2pcs or 4pcs | 1-2L |
| XQM-20 | 20L | 2-5L | 2pcs or 4pcs | 2-4L |
| XQM-40 | 40L | 5-10L | 2pcs or 4pcs | 5L |
| XQM-60 | 60L | 10-15L | 2pcs or 4pcs | 10L |
| XQM-100 | 100L | 20-25L | 2pcs or 4pcs | 20L |
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. |
Vacuum mill jar |
Available grinding balls in full sizes
Stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, cemented carbide, crystal glass and other special metal materials.
| References About Grinding Medias & Materials | ||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
Applications:
The Laboratory Planetary Ball Mill has a wide range of applications in various industries, including geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, and environmental protection.It is tailored for production in sectors such as electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganese oxide, catalysts, phosphors, long-lasting luminescent phosphors, rare earth polishing powders, and electronic glasses.
This powerful mill is capable of handling a variety of materials, such as powder, fuel cell, zinc oxide varistor, piezoelectric ceramic, nanomaterials, wafer ceramic capacitor, MLCC, thermistors (PTC, NTC), ZnO varistors, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, and Mn-Zn ferrite. It serves as a highly adaptable tool for industries aiming to manufacture high-quality materials and components.
Customization:
- Brand Name: TENCAN
- Model Number: XQM-6
- Place of Origin: Changsha, China
- Certification: ISO CE
- Minimum Order Quantity: 1 set
- Price: negotiable
- Packaging Details: Plywood Case & Foam
- Delivery Time: 3-7 days
- Payment Terms: T/T, Western Union
- Supply Ability: 450 sets per month
Our Planetary Ball Mill, model XQM-6, is a high-energy ball mill designed for grinding and mixing materials. It is a versatile and user-friendly machine that can meet various experimental needs.
With a jar volume of 1.5L for each jar, our ball mill can process a maximum of 1.98L of material at a time, making it suitable for large-scale production. Its powerful 0.75kw motor provides efficient and precise grinding, ensuring high-quality and consistent results.
In addition to its excellent performance, our Planetary Ball Mill also comes with a 1-year warranty, giving you peace of mind and assurance of its durability. Its compact design and lightweight of 90kg make it easy to move and transport, making it an ideal choice for laboratories and research facilities.
As a reputable manufacturer, we provide customized services for our Planetary Ball Mill, including varying jar volumes to cater to specific requirements. We also provide OEM and ODM services to cater to your unique requirements. Our team of experts will work closely with you to ensure that you get the right ball mill for your applications.
Opt for TENCAN's XQM-6 high-energy ball mill, which offers exceptional grinding performance, reliability, and tailored solutions to meet your research or production demands.
Packing and Shipping:
The Planetary Ball Mill is packaged in a sturdy wooden case to ensure safe delivery. The case is then further protected with foam and plastic wrapping materials to prevent any damage during transportation.
For international deliveries, the product is safely encased in a wooden crate and securely fastened with metal straps to guarantee its protection during transportation.
Upon request, the product can also be packaged in accordance with specific requirements, such as customized labeling or additional protective materials.
Depending on the customer's preference and location, shipping options encompass air freight, sea freight, or express delivery services.
All shipments are carefully tracked and monitored to ensure timely delivery and customer satisfaction.
For more information on packaging and shipping, please contact our sales team.
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is TENCAN. - Q: What is the model number of this product?
A: The model number of this product is XQM-6. - Q: Where is this product made?
A: This product is made in Changsha, China. - Q: Is this product certified?
A: Yes, this product is certified with ISO CE. - Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 set.
