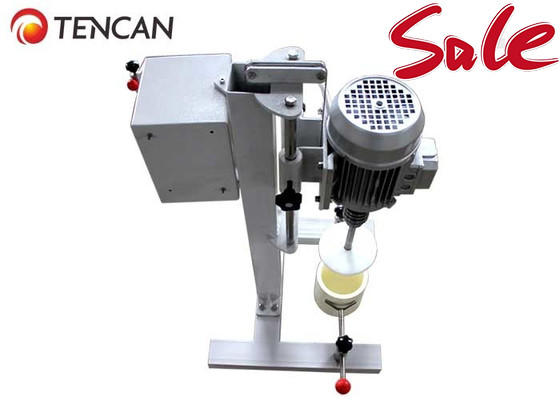

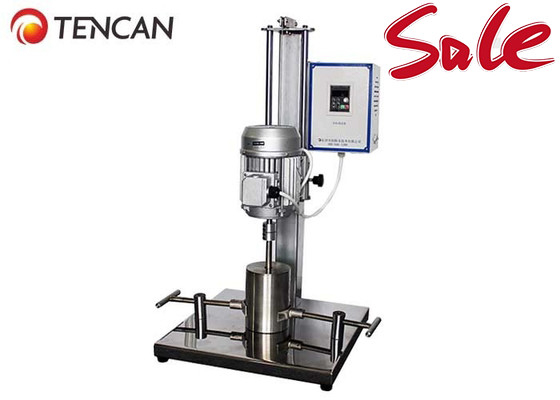

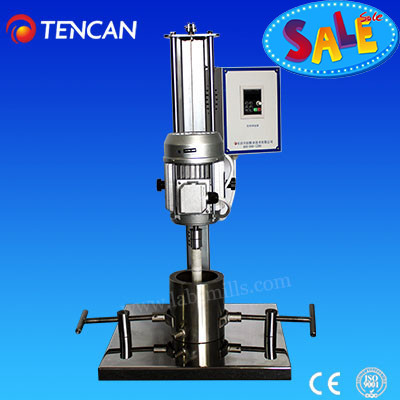

Lab Attritor Stirring Ball Mill Media Mills 220V 50Hz Timing / Cycling Temperature Adjustable
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | JM-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case+Foam |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Product Name: | Lab Stirred Ball Mill | Model No.: | JM-1L/2L/3L |
|---|---|---|---|
| Voltage: | 220V-50Hz | Power: | 0.47KW |
| Rotate Speed: | 50-1400 Rpm | Speed Control: | Frequency Control |
| Total Volume: | 1L | Max Capacity: | 0.35L |
| Highlight: | 220V Stirring Media Mills,Lab Stirring Ball Mill,Temperature Adjustable Stirring Ball Mill |
||
Product Description
China Tencan 220V 1400 RPM Lab Stirred Ball Mill With Functions of Timing,Speed Adjusting, Cycling & Temperature Adjustment
Overview
Lab Stirred Ball Mill is primarily made up of a jar containing internal grinding media, a stirring device, along with auxiliary parts such as a recycling apparatus, cooling system, timer, and speed control unit. It is distinguished by its high efficiency and capacity to yield finely ground materials, meeting the technological specifications of various processes. Because of its capability for small-batch production, minimal power usage, and economic pricing, the stirred ball mill serves as an optimal selection for universities, research institutions, and companies involved in crushing innovative materials and conducting paint research.
Working Principle
The stirring ball mill consists primarily of a stationary grinding cylinder filled with small-diameter grinding media, a stirring mechanism, and various auxiliary devices such as a circulation system, cooling system, timer, and speed controller. It boasts high grinding efficiency and the ability to produce finely ground particles, making it well-suited to meet various process parameters and simulate production indicators. Additionally, its benefits of small-batch processing, low power consumption, and cost-effectiveness render it an ideal choice for educational institutions, research units, and companies engaged in grinding technology, new material research, and coating development. This mill is extensively utilized in the production of ultra-fine powders for zirconium silicate, zirconium, alumina, ceramics, the chemical industry, electronic materials, magnetic materials, paper making, coatings, non-metallic minerals, new materials, paints, graphite, calcium carbonate, pharmaceuticals, and other fields.
Applications
Lab Stirred Ball Mill is widely used in fields of zirconia silicate, zirconia, alumina oxide, ceramic, chemical, electronic material, magnetic material, paper-making, painting, non-metal minerals, new materials, coating, graphite, calcium carbonate, medicine, and so on.
Features
1. High utilization rate of energy, saving energy.
2. The granularity can be adjusted by varying the grinding time.
3. It exhibits reduced vibration and low noise levels.
4. Simple structure, easy operation.
5. Meet requirements of various processes, realize continuous or intermittent production.
6. Jar with jacket, easy to control the grinding temperature .
7. Customized service is available. Special functions such as timing, speed adjusting, recycling, temperature controlling can be selected and ordered.
8. A variety of grinding jars in different materials is available for customer’s option such as stainless steel, corundum ceramic, polyurethane, zirconia and so on.
Technical Parameters
| Technical Parameters of Tencan Lab Stir Ball Mill | ||||||||
| Model No. | Rotate Speed (RPM) |
Total Volume (L) |
Max Load Volume (L) |
Power Supply | Available Jars | Feed Sizes (mm) |
Output Granularity (μm) |
Control Mode |
| JM-1L | 50-1400 | 1 | 0.35 | 220V/0.37KW | Stainless Steel Jar Nylon Mill Jar Corundum Mill Jar PU Mill Jar Zirconia Mill Jar Agate Mill Jar PTFE Mill Jar |
≤5mm | ≤1μm | Frequecny Converter |
| JM-2L | 50-1400 | 2 | 0.70 | 220V/0.37KW | ≤5mm | ≤1μm | Frequecny Converter | |
| JM-3L | 50-1400 | 3 | 1.05 | 220V/0.37KW | ≤5mm | ≤1μm | Frequecny Converter | |
Available Mill Jars & Balls
As a professional manufacturer of planetary ball mill, we not only supply various kinds of planetary ball mills, but also provide all kinds of accessories of mill jars and mill balls in full sizes.
Available mill jars: 304 or 316L stainless steel mill jars, agate mill jars, , Alumina ceramic mill jars (corundum ) zirconia mill jars, silicon nitride mill jars, nylon mill jars, PU mill jars, tungsten carbide mill jars, PTFE mill jars, and etc.
Available mill balls in full sizes: Tungsten carbide balls, Agate balls, Zirconia balls, Stianless steel Balls, Alumina balls, and etc.
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. | Vacuum mill jar |
| References About Grinding Medias & Materials | ||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Matching Solutions for Mill Jars & Balls | |||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
