Double Sides Laboratory Glove Box Gas Management System with Inert 3 Ports Organic Gas Purification

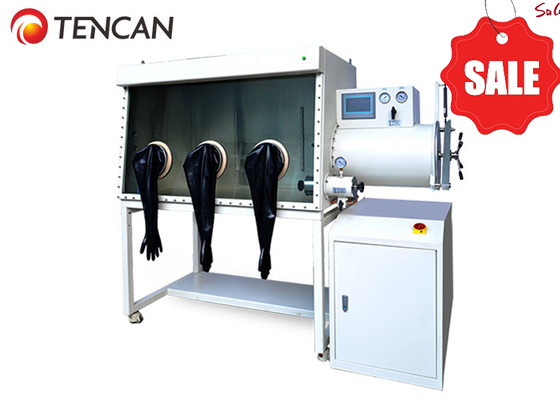

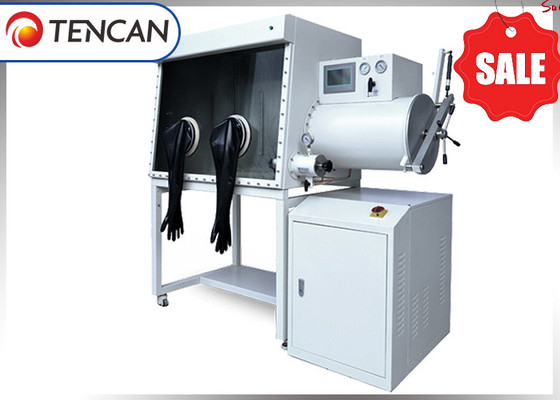

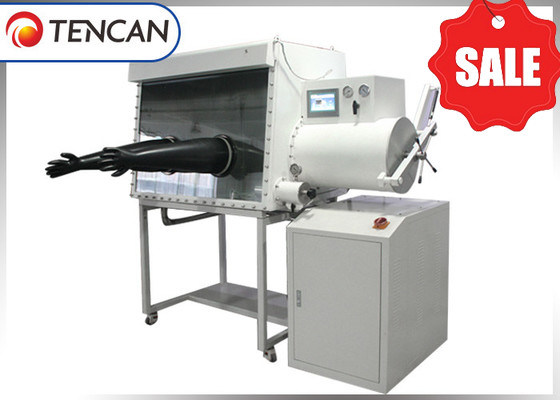

China Tencan 3 Glove Ports Single Side Glove Box With Purification System for Water and Oxygen Removal

Brief Introduction

The Purification System Glove Box represents a specialized laboratory apparatus designed to accommodate a high-purity inert gas fill, while continuously circulating and filtering out active substances from within. Commonly referred to as both the "vacuum glove box for water and oxygen removal" and the "inert gas purification glove box," this device serves multiple primary functions: eliminating water content, reducing oxygen levels, and removing other organic gases. It finds extensive application in creating high-purity environments devoid of water, oxygen, and dust particles.

Working principle

The box and purification system are integrated to form a tightly sealed working environment. As inert gas or nitrogen is continuously infused into the box, active substances within are cyclically extracted, ensuring the interior maintains a consistently high level of cleanliness and a pure inert gas atmosphere (with water content no greater than 1 ppm and oxygen content no more than 1 ppm).

Structure Principle

The Purification System Glove Box primarily comprises two components: the main box body and a transition chamber. We offer custom designs and specifications tailored to our clients' unique requirements.

The main box body features two (or more) glove operation interfaces positioned either at the front or back, allowing for simultaneous operation by one or multiple individuals, thereby enhancing the efficiency of glove box utilization. Additionally, observation windows on either the front or back side provide clear visibility into the box's interior, enabling users to monitor the operational process seamlessly. The transition chamber is equipped with air suction and charging nozzles on its valves, facilitating air extraction or infusion as needed. Furthermore, the main box body is installed with a valve and nozzle system that can maintain air pressure balance inside the box when necessary.

The transition chamber serves as a buffer zone between the main box body and the external environment. It consists of two sealing doors, two valves, and a chamber body. Both sealing doors effectively isolate the interior of the main box body from the outside, enabling users to freely move items in and out of the box without the need for repeated evacuation and inflation cycles, thereby simplifying the process and reducing inconvenience.

Applications

It is applicable for creating a pure environment by eliminating water, oxygen, and dust.

R&D and production of battery industry (Lithium ion battery, powder battery, solar cell, lithium ion phosphate battery ).

R&D and manufacture of special lamp (HD lamp, metal halide lamp, ceramic metal halide lamp).

Welding (resistance welding, TIG welding, laser welding, plasma welding, brass solder)

R&D and production of OLED

R&D and production of pharmaceuticals

R&D and production of super capacitors

Fine chemical industry

Nuclear industry

R&D and production of new energy materials

Specifications

Notes:
Cabinet water and oxygen content under the standard condition:
Water content ≤1ppm, oxygen content≤1 ppm (Note: Standard condition is that an atmospheric pressure, constant temperature of 20 degree).
Leakage Rate: ≤0.05Vol%/ h (subject to change value of oxygen content in box)
Used Gas:
a) Working Gas: N2,Ar,He and etc.
b) Controlling Gas: Compressed air or Inert Gas.
C) Restoring Gas: Mixed gas of working gas and hydrogen.
If there is only a water removal system or an oxygen removal system in place, the restoring gas will be identical to the working gas.
Remarks: All single-sided boxes equipped with four gloves constitute an assembled glove box system. The number of these assembled boxes can be customized based on customer needs, and the quantity of purification columns is tailored to match those requirements.

Technical Parameters

Functions
