Laboratory Sieve Shakers Vibrating Screen Machine 0.25KW 750r/Min for Ultrafine Powder

China Tencan 0.25KW 10t/H Round 750r/Min Ultrafine Powder Tumbler Screen Machine

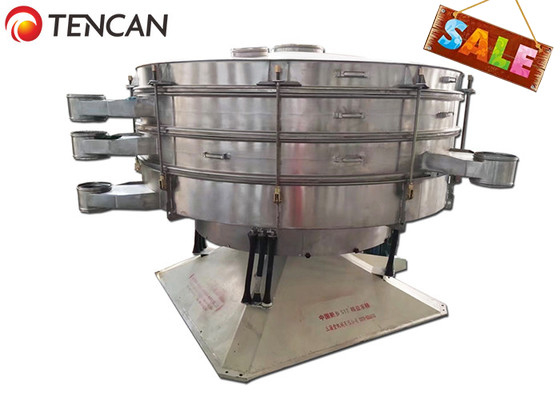

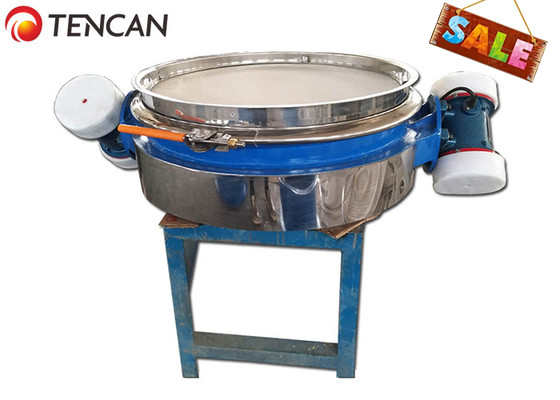

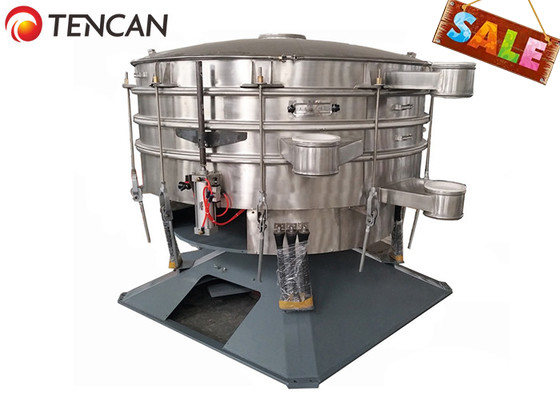

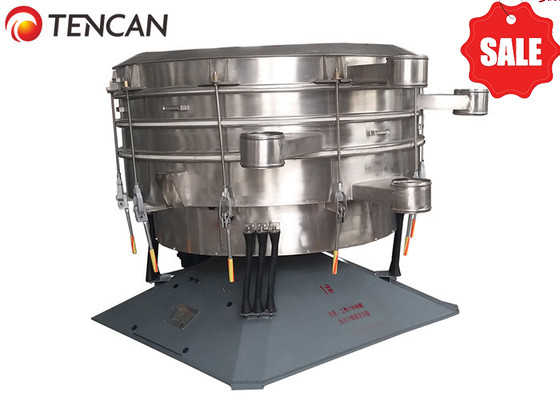

The HXSY series of Round Tumbler Screen Machine is a low-frequency rotary vibrating screen designed to mimic manual sieving techniques. It operates based on a combination of radial displacement and circular motion centered around a displacement axis, creating a spiral motion. The adjustable eccentricity vibration exciter generates a nonlinear three-dimensional movement, which causes the materials to move in a similar manner to manual sieving, achieving the desired screening effect. This machine is ideal for materials with spherical, cylindrical, flaky, or even irregular shapes that tend to clog screens and require precise screening. To cater to customer demands for high-capacity and high-precision screening, we have specially designed and developed this high-efficiency, high-precision screening machine. It effectively mimics manual screening movements and is capable of screening ultra-fine powder and micro particles, making it particularly suitable for difficult-to-screen materials.

With the screening accessories, a more ideal screening effect can be obtained a kind of inertial equipment with mature technology and classical application.

The Tumbler sieve machine is particularly used to classify small materials and fine powder according to its unique structure and working principle. It is not only applied to dry sieving, but also wet sieving. Now this model is widely used in mining, building material, metallurgy, foundry, abrasive material, chemical, light industry, medical, food and other industries..

Due to the use of different materials and craftsmanship for its screen and frame, the entire sealing structure effectively prevents material dust from escaping, ensuring no air pollution. Additionally, it is highly convenient to integrate drying, cooling, deducting, cleaning, and other auxiliary facilities as components of the tumbler screen.

2. Features-- tumbler screen

1.It achieves up to 5 times the output per unit area.

2.Sieving efficiency is as high as 90% -95%.

3.The acceleration is 4.5 times less than that of a vibrating sieve.

4.Enhanced sieving parts increase durability and minimize maintenance requirements.

5.Up to 5 times output per unit area.

3. Applicable Industries:

Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder.Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce.Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder.Medicinal industry: all kinds of medicine.Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon.

4. Applicable Materials:

Powdered sugar, starch, soybean milk, milk powder, iron powder, alloy powder, zinc powder, pigment, washing powder, painting, soda ash.

5. Technical parameters:
