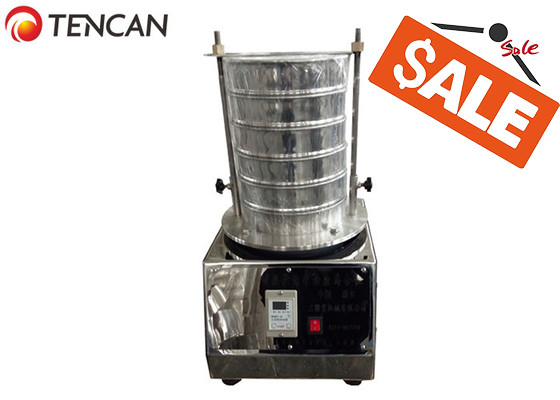

Lab Sieve Shaker Vibrating Screeners Analysis Equipment Less Than 1kg 5.0mm Screen Size
Product Details:
| Place of Origin: | China |
| Brand Name: | TENCAN |
| Certification: | CE&ISO |
| Model Number: | BZS-300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | One set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plywood case with foam |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Product Name: | Lab Test Sieve Shaker | Model No.: | BZS-300 |
|---|---|---|---|
| Diameter: | 300mm | Screen Size: | 0.008-5.0mm |
| Capacity Per Batch: | Less Than 1kg | Vibrating Frequency: | 1420 Rpm |
| Voltage: | 220V/50Hz/60Hz | Power: | 0.125KW |
| Highlight: | Lab Sieve Shaker,sieve shaker lab equipment,Vibrating Screeners Analysis Equipment |
||
Product Description
China Tencan Less Than 1kg 300mm 5.0mm 1420 Rpm Lab Sieving Shaker Machine,Vibrating Sieve Machine
Technical Parameters of Lab Sieve Shaker
| Items | Unit | Parameters | |
| Standard model(SY) | Deck | 8 | |
| Diameter | mm | φ300φ | |
| granularity | mm | 0.008-5 | |
| Noise | dB | ≤50 | |
| Capacity for each batch | Kg | ≤1 | |
| Amplitude | mm | ≤5 | |
| Motor | Volt | V | 220 |
| Rpm | r/min | 1420 | |
| Power | KW | 0.125 | |
| Overall size | mm | 360×300×736 | |
| Weight | Kg | 25 | |
Lab test sieve shaker introduction
The Lab Test Sieve Shaker goes by several names, such as the standard inspection screen, test screen, standard analysis screen, and standard screen. It represents a state-of-the-art, high-tech fine powder classification apparatus that has been developed building upon the foundation of the standard test screen. Currently, it stands as the most efficient piece of equipment available for resolving the issue of mesh blockage that frequently occurs when conducting fine powder sample screening in laboratories. This Lab Test Sieve Shaker finds extensive application across a broad range of laboratory settings, including those in the pharmaceutical, metallurgical, chemical, mineral processing, and food industries, among others. It plays a crucial role in ensuring accurate and reliable powder analysis and classification in these sectors.
Applications
The Lab Test Sieve Shaker enjoys extensive utilization in a diverse array of industries, spanning metallurgy, particle research, chemicals, pharmaceuticals, building materials, geology, and national defense, both in research and production settings. Its primary functions revolve around screening, filtering, and testing of powders, particles, the solid content present in liquids, as well as debris content. The standard test sieve screen incorporated within it is typically fabricated from either metal woven screen or punched plate. Notably, the mesh size is customarily determined according to the buyer's specific requirements, allowing for a high degree of flexibility and adaptability to meet the unique needs of different applications.
Features & Advantages
1. It is furnished with an optimized integrated circuit control system, which not only endows it with powerful functions but also ensures straightforward and user-friendly operation. This advanced control setup streamlines the overall process, making it accessible even to those with minimal technical expertise while still delivering top-notch performance.
2. A kind of granular material can precisely separate 2-9 particle segments at the same time.
3. It can be used for analysis of fineness and impurity content of slurry.
4. Low noise, light weight, table operation without fixing.
5. The frequency, mode as well as amplitude of vibration are all adjustable with high efficiency, allowing for precise customization based on specific operational requirements. This flexibility empowers users to fine-tune the vibration parameters to achieve optimal results in various applications.
Structure Diagram of Lab Test Sieve Shaker
